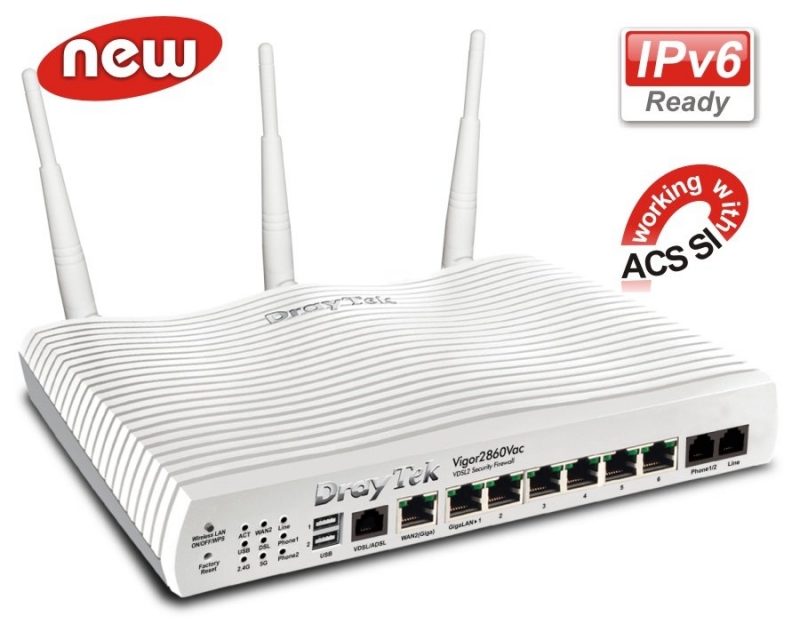

DrayTek Vigor2860ac

Код: 5975

Производитель: DrayTek

Dual-WAN ADSL2+/Ethernet Маршрутизатор для SMB + USB 3G/4G
16 945 грн.
20 210 грн.
- +
Купить

1*VDSL2/ADSL2+ WAN, 1*GigaWAN, 6*GigaLAN, 2*USB(3G/4G, FTP/Samba, Printer, temperature sensor), Возможность использовать WiFi Wireless 2.4G в качестве WAN2, Multi-PVC, 32 VPN, 16 SSL VPN, SSL VPN (LAN to LAN), VPN Backup, VPN Load Balance, Central VPN Management (8/16), User Management, Firewall, QoS, Multi-LAN (6+DMZ+IP Routed Subnet), Load-Balance/Route Policy (50), WAN Budget, Internal RADIUS, 802.1q (WAN, LAN), CSM, TR-069, WiFi 802.11n 300Mb Dual Band 4 SSID 2,4GHz+ 802.11ac 1300Mb 4 SSID 5GHz, Wireless  Station Control, Web Portal (Advertisement), 3*Ant R-SMA, Central AP Management (20), IPTV, SMS/Mail Alert Service, IPv6, SmartMonitor 30, Dashboard

1. VDSL2/ADSL2/2+

  • ITU-T G.993.2 (VDSL2)
  • ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B
  • DSL Forum Performance Specification: ADSL TR-048/67, TR-100; VDSL: WT-114
  • Erasure Decoding, Increased Interleaver Depth and Re-transmission
  • EFM (IEEE 802.3 ah)
  • VDSL2 Profile: up to 30a

2. WAN Protocol

  • DSL (WAN-1)/Giga Ethernet (WAN-2)
    • DHCP Client
    • Static IP
    • PPPoE
    • PPTP/L2TP (WAN-2 only)
    • PPPoA (ADSL2 only)
    • 802.1q Multi-VLAN Tagging
  • USB (WAN-3)
    • PPP/DHCP
  • IPv6

    • Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4

    • Dual Stack: PPP, DHCPv6 Client, Static IPv6

3. USB

  • 3G (HSDPA) as WAN
  • Printer Sharing
  • File System

    Support FAT32 File System
    Support FTP Function for File Sharing
    Support Samba for File Sharing

4. VPN

  • Up to 32 VPN Tunnels
  • Protocol : PPTP, IPsec, L2TP, L2TP over IPsec
  • Encryption : MPPE and Hardware-based AES/DES/3DES
  • Authentication : MD5, SHA-1
  • IKE Authentication : Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN
  • DHCP over IPsec
  • IPsec NAT-traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-through
  • VPN Wizard
  • mOTP
  • SSL VPN: 16 Tunnels
  • VPN Trunk (Load Balance/Backup)

5. Multi-WAN

  • Load-Balance/Route Policy
    (The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)
  • WAN Connection Failover

6. CSM (Content Security Management)

  • IM/P2P Application
  • GlobalView Web Content Filter (Powered by CYREN-90)
  • URL Content Filter :
    • URL Keyword Blocking (Whitelist and Blacklist)
    • Java Applet, Cookies, Active X, Compressed,  Executable, Multimedia File Blocking
    • Excepting Subnets

7. Bandwidth Management

  • QoS

    • Guarantee Bandwidth for VoIP

    • Class-based Bandwidth Guarantee by User-defined Traffic Categories
    • DiffServ Code Point Classifying
    • 4-level Priority for Each Direction (Inbound/Outbound)
    • Bandwidth Borrowed
  • Bndwidth/Session Limitation
  • Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping

8. Network Feature

  • Packet Forwarding Acceleration*
  • DHCP Client/Relay/Server
  • IGMP Snooping/Proxy V2 and V3
  • Triple-Play Application
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS Client
  • DNS Cache/Proxy and LAN DNS
  • UPnP 30 sessions
  • Multiple Subnets
  • Port-based/Tag-based VLAN (802.1q)
  • Routing Protocol:
    • Static Routing
    • RIP V2

9. Network Management

  • Web-based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface, Telnet/SSH)
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP/HTTP/TR-069
  • Logging via Syslog
  • SNMP Management MIB-II
  • Management Session Time Out
  • 2-level Management (Admin/User Mode)
  • TR-069
  • TR-104
  • LAN Port Monitoring
  • Support Smart Monitor (30-nodes)
  • Central AP Management
  • Central VPN Management (Up to 8 Remote Routers)

10. Firewall

  • Multi-NAT, DMZ Host, Port-redirection and Open Port
  • Object-based Firewall, Object IPv6, Group IPv6
  • MAC Address Filter
  • SPI (Stateful Packet Inspection) (Flow Track)
  • DoS/DDoS Prevention
  • IP Address Anti-spoofing
  • E-mail Alert and Logging via Syslog
  • Bind IP to MAC Address
  • Time Schedule Control
  • User Management

11. Wireless AP

  • 802.11ac WLAN with Concurrent 2.4/5 GHz Frequency
  • Wireless Client List
  • Wireless LAN Isolation
  • 64/128-bit WEP
  • WPA/WPA2
  • Wireless Wizard
  • Hidden SSID
  • WPS
  • MAC Address Access Control
  • Access Point Discovery
  • WDS (Wireless Distribution System)
  • 802.1x Authentication
  • Multiple SSID
  • Wireless Rate-control
  • IEEE802.11e: WMM (Wi-Fi Multimedia)
  • SSID VLAN Grouping with LAN Port (Port-based VLAN)
Hardware Interface LAN

6 x 10/100/1000Base-Tx LAN Switch, RJ-45
WAN

1 x VDSL2/ADSL2/2+ WAN Port (WAN1), RJ-11 for Annex A/RJ-45 for Annex B

1 x 10/100/1000Base-Tx, RJ-45 (WAN2)
USB 2 x USB Host 2.0

3 x Detachable Antennas
1 x Factory Reset Button
1 x Wireless On/ Off/ WPS Button
Temperature Operating : 0°C ~ 45°C
Storage : -25°C ~ 70°C
Humidity 10% ~ 90% (non-condensing)
Max. Power 24 Watt
Dimension L241 * W165 * H44 (mm)
Power DC 12V @ 1.5A ~ 2A
