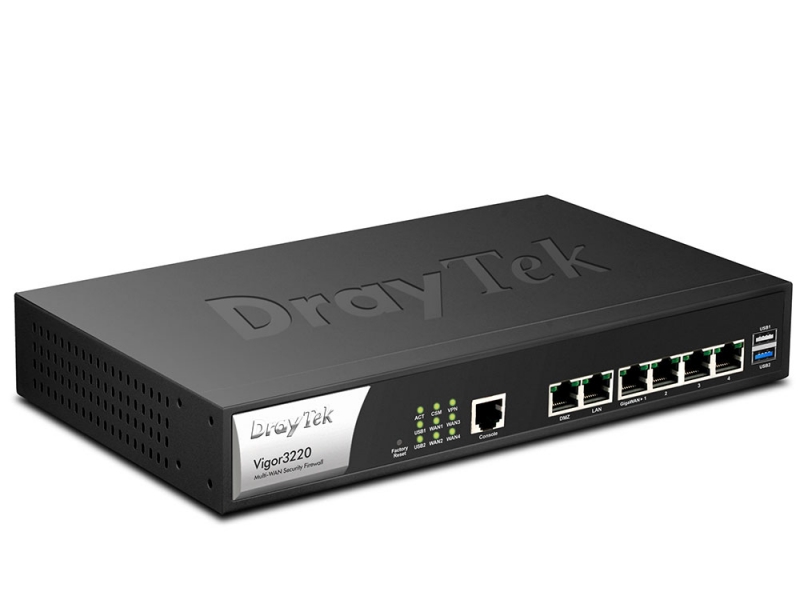

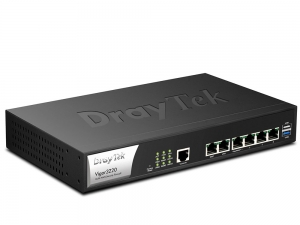

DrayTek Vigor3220

Код: 5992

Производитель: DrayTek

Multi-WAN  (Ethernet / 3.5G)

• Outbound Policy-based Load-balance
• WAN Connection Failover

WAN Protocol

• DHCP Client
• Static IP
• PPPoE
• PPTP
• L2TP

 VPN

• Up to 100 VPN Tunnels (including 50 SSL VPN tunnels)*
• Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption: MPPE and Hardware-based AES/DES/3DES
• Authentication: MD5, SHA-1
• IKE Authentication: Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN (remote user dial-in)
• DHCP over IPSec
• IPSec NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-Through
• mOTP

 Firewall

• DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries)
• Object-based Firewall
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS Prevention
• IP Address Anti-Spoofing
• E-mail alert and logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control

 USB

• 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle
  (USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer)
• Printer Sharing
• File System :
  • Support FAT32 / FAT16 file system
  • Support FTP function for File Sharing

Bandwidth Management

• QoS :
  • Guarantee bandwidth for VoIP
  • Class-based bandwidth guarantee by user-defined traffic categories
  • DiffServ Code Point Classifying
  • 4-level priority for each direction (Inbound/Outbound)
  • Bandwidth Borrowed
• Bandwidth / Session limitation
• Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS

Network Management

• Web-Based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/FTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management with MIB-II
• Management Session Time Out
• 2-level management (Admin/User Mode)
• TR-069 Management
• TR-104 Management

Central Device Management

• AP Management : 30 nodes (independent with External Device feature)*
• Central VPN Management : 8 nodes
• Switch Management : 10 nodes *

Content Security Management (CSM)

• APP Enforcement
  • Support APPE Signature Upgrade by license.
• URL Content Filter
  • Access Control : URL Keyword Blocking (White/Black List)
  • Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking
• Web Content Filter (support Cyren and BPjM )

Network Features

• Packet Forwarding Acceleration
• DHCP client/relay/server
• DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125
• IGMP v2/v3
• LAN DNS /DNS Forwarding
• Dynamic DNS
• NTP client
• Call scheduling
• RADIUS /TACACS+ Client
• RADIUS Server
• Active Directory /LDAP compatible (client)
• DNS cache/proxy
• UPnP 50 sessions
• Wake on LAN
• Bonjour service
• Routing protocol :
  • Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries)
  • RIP v1/v2

Wireless Features (Vigor3220n only)

• Support Single band 2.4G
• IEEE802.11b/g/n Compliant
• Wireless Wizard
• Wireless Client List
• Wireless LAN Isolation
• Security:
  • 64/128-bit WEP
  • WEP /802.1x only
  • WPA /802.1x only
  • WPA2 /802.1x only
  • Mixed(WPA+WPA2)/802.1x only
  • WPA/PSK
  • WPA2/PSK
  • Mixed(WPA+WPA2)/PSK
• Hidden SSID
• WPS
• WDS (Wireless Distribution System)
• MAC Address Access Control (Total is 64 entries)
• AP Discovery
• Station List
• Station Control
• 802.1x Authentication
• Multiple SSID (Up to 4 SSIDs)
• Bandwidth Management :
  • Confidential: level 2 DrayTek Corp.
  • Per SSID Bandwidth Limitation (Auto Adjustment)
  • Per Station Bandwidth Limitation
• WMM
• SSID VLAN grouping with LAN port (Port based VLAN)
• DrayTek WLAN Security default settings:
  • SSID: DrayTek
  • Security Settings → Mode: Mixed(WPA+WPA2)/PSK
