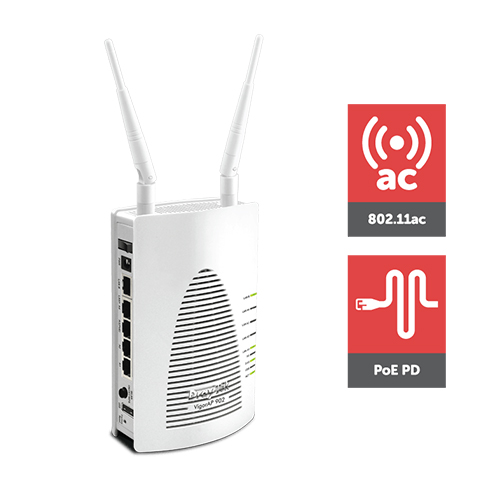

DrayTek VigorAP 902

Код: 4435

Производитель: DrayTek

WiFi точкв доступа
8 173 грн.
12 110 грн.
- +
Купить
Hardware Interface
  • 5 x 10/100/1000M Base-T LAN Switch, RJ-45
  • (LAN A3 for PoE Indoor Use)
  • 1 x USB 2.0 Host
  • 2 x Detached Antennas
  • 1 x Factory Reset Button
  • 1 x Wireless ON / OFF / WPS Button
  • 1 x Power ON / OFF Button
Wi-Fi Frequency

11b/g/n :

  • 2.412 ~ 2.462GHz (USA)
  • 2.412 ~ 2.472GHz (Europe ETSI)

11a/an/ac :

  • 5.150 – 5.250 & 5.725 – 5.825 GHz (USA)
  • 5.150 – 5.250 & 5.470 – 5.725GHz (Europe ETSI)
Wireless Transmit Power 2.4GHz Max : 18 dBm
5 GHz Max : 19 dBm
Temperature Operating : 0°C ~ 40°C
Storage : -20°C ~ 60°C
Humidity 10% ~ 90% ( non-condensing )
Power Adapter DC12V@1A
Max. Power 12 watt
Dimension W157 * H30 D127 ( mm )
Voltage of 802.3af PoE 44v~57v

Wireless AP

  • Band 2.4GHz
    • IEEE802.11b/g/n compliant
      • 11b only
      • 11g only
      • 11n only
      • Mixed (11b+11g)
      • Mixed (11g+11n)
      • Mixed (11b+11g+11n)
    • Operation Mode:
      • AP
      • Station Infrastructure
      • AP Bridge Point to Point
      • AP Bridge Point to Multi-point
      • AP Bridge WDS (Wireless Distribution System)
      • Universal Repeater
  •  Band 5GHz
    • IEEE802.11a/n and IEEE802.11ac draft compliant
      • 11a only
      • 11n only
      • Mixed (11a+11n)
      • Mixed (11a+11n+11ac)
    • Operation Mode:
      • AP
      • Universal Repeater*
  • Support up to 64 Wireless Clients per band
    • Limited Wireless Clients
  • Multiple SSID
    • Support 4 SSIDs per band
  • Hidden SSID
  • Wireless Isolation
  • VLAN Grouping and SSID mapping for LAN A & B
  • MAC Clone
  • Security Mode
    • Open (Disable)
    • 64/128-bit WEP
    • WPA/PSK
    • WPA2/PSK
    • Mixed mode(WPA+WPA2)/PSK
    • 802.1X
    • Encryption: AES/TKIP
  • 802.1x authentication
    • Internal RADIUS Server support PEAP
    • RADIUS Proxy support TLS & PEAP
  • Internal Radius Server
  • MAC Address Control
    • Support total 256 entries
  • WPS mode
    • PBC
    • PIN
  • AP Discovery
  • WMM
  • Station List
  • Bandwidth Management
  • Airtime Fairness
  • Roaming
    • PMK-Caching
    • Pre-Authentication
  • Station Control
  • DrayTek WLAN Security default settings (Refer to Default Configuration Section):
    PSK write method follow MAC address mechanism
    Telnet command to:
    • Read PSK from flash (*similar with MAC Address read method)
    • Disable/Enable WLAN security, for test mode

USB

  • Printer Server
  • Support temperature sensor

Network Management

  • Web-based User Interface (HTTP/HTTPS)
  • CLI (Command Line Interface, Telnet)
  • Configuration Backup/Restore
  • Firmware Upgrade via HTTP/TR-069
  • Syslog/Mail Alert
  • DHCP Server & Client
  • TR069 (Compliant with VigorACS SI)
  • AP Management (with Vigor Series Routers)

Hardware Interface

  • 5 x 10/100/1000M Base-T LAN Switch, RJ-45 (LAN A3 for PoE Indoor Use)
  • 1 x USB 2.0 Host with current limit 170mA
  • 2 x SMA Detached Antennas
  • 1 x Factory Reset Button
  • 1 x Wireless ON / OFF / WPS Button
  • 1 x Power ON / OFF Button
