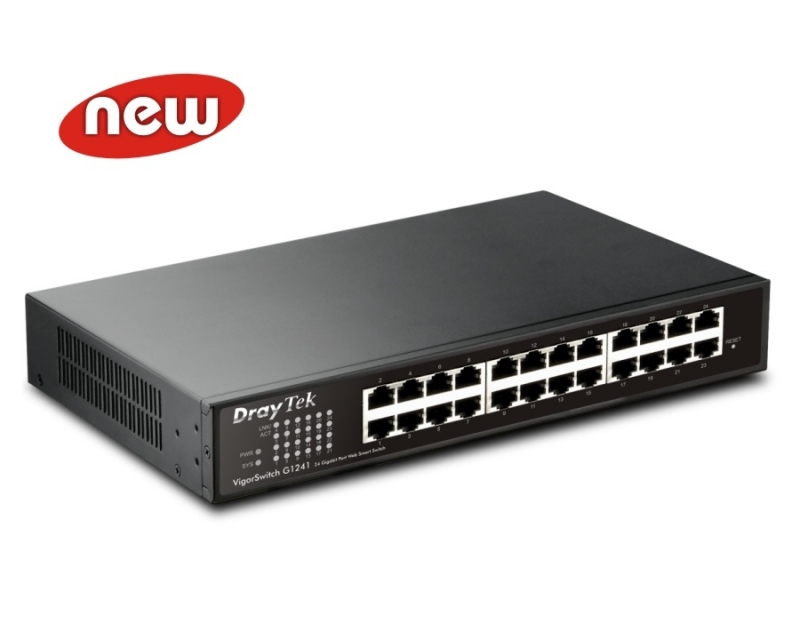

DrayTek VigorSwitch G1241

Код: 5735

Производитель: DrayTek

        Standard Compliance

• • IEEE 802.3 10Base-T

  • IEEE 802.3u 100Base-T

  • IEEE 802.3ab 1000Base-TX

  • IEEE 802.3x Flow Control Capability

  • ANSI/IEEE 802.3 Auto-negotiation

  • IEEE 802.1q VLAN

  • IEEE 802.1p Class of Service

  • IEEE 802.1d Spanning Tree

  • IEEE 802.1w Rapid Spanning Tree

  • IEEE 802.3ad Port Trunk with LACP

  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

• VLAN

  • IEEE802.1Q Tag-based VLAN

  • Support Port-based VLAN

  • Support Static VLAN

  • Port Isolation

  • Management VLAN

  • Voice VLAN (OUI Mode)

  QoS

  • Support 8 Queues

  • Supports Port-based, Flow-based, IP DSCP and IP TOS Precedence

  • Supports 802.1p VLAN Priority based

  • Supports WRR, WFQ and Strict Priority

• Link Aggregation

  • Support Static Trunk with 8 Groups

  • Up to 8 Ports for Each Group

  • Support Traffic Load Balancing

• Management

  • Support SNMP v1, v2c

  • Support IGMP v1/v2 Snooping/v3 Basis (BISS)

  • Support IGMP v2/v3 Querier

  • Firmware Upgrade via HTTP/TFTP

  • Support Porting Mirroring

  • Support DHCP Client/DNS Client

  • Broadcast Storm/Unknown Multicast/Unknown Unicast Protection

  • Support Loop Detection

  • IEEE802.3az Energy Efficient Ethernet Task Force

  • Support Cable Diagnostic

  • DoS Prevention
