System |
Standard |
-
802.3 10Base-T
-
802.3u 100Base-T
-
802.3ab 1000Base-T
-
802.3x Flow Control
-
802.3 Auto-Negotiation
-
802.1p Class of Service
-
802.1d STP
-
802.1w RSTP
-
802.3ad LACP
-
802.1AB LLDP
-
802.3az EEE
|
IP version |
|
Performance |
-
56 Gbps switching capacity
-
41.7 Mpps forwarding rate (64 bytes)
-
8k MAC address table
-
Up to 9KB jumbo frame
|
Hardware |
Ports |
-

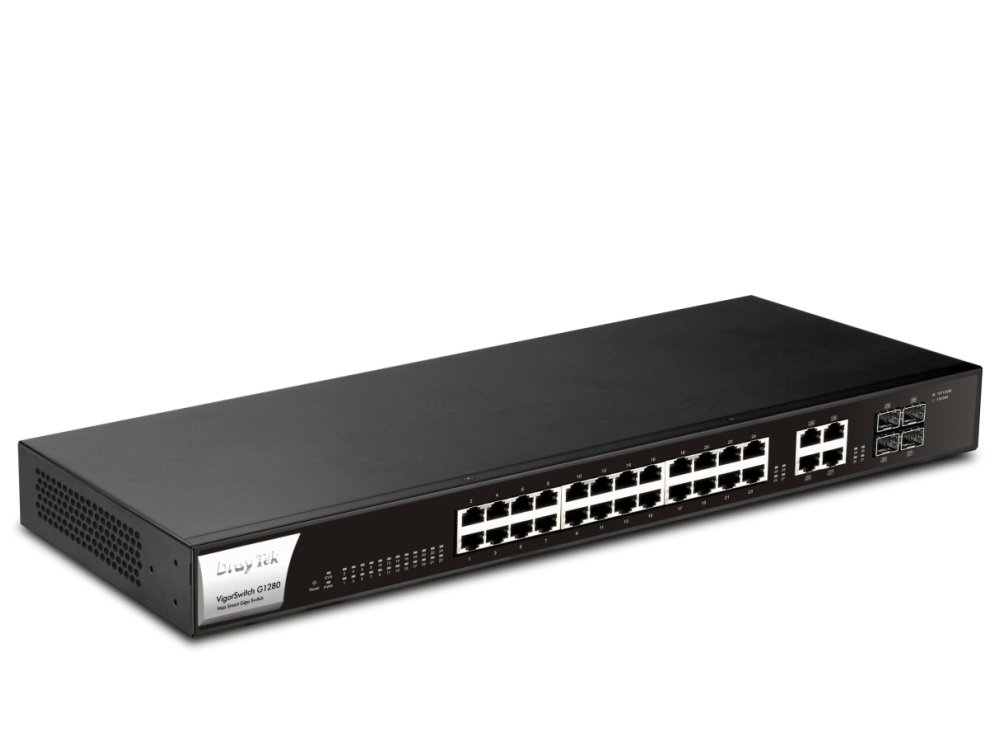

24 x 10/100/1000 Gigabit Ethernet RJ-45 capable ports
-
4 Gigabit RJ-45/SFP Combo ports
|
Power |
-
Max. Power Consumption: 30 watts
|
VLAN |
|
-
Up to 256 VLAN
-
802.1q Tag-based VLAN
-
Management VLAN
-
Voice VLAN
-
Port Isolation
|
QoS |
QoS Queues |
-
8 queues
-
Queue Scheduling: SPQ, WRR
|
Rate Limit |
-
Ingress Rate Control
-
Egress Rate Control
|
Class of Service |
-
802.1p CoS
-
DSCP
-
CoS-DSCP
-
IP Precedence
|
Security |
|
-
Storm Control
-
DoS Defense
|
Availability |
Link Aggregation |
-
802.3ad Support
-
Up to 8 ports per group
-
Up to 8 groups
|
Spanning Tree |
-
802.1d (STP)
-
802.1w (RSTP)
|
Multicast |
|
Management |
Configuration
& Monitoring |
-
Web Interface: HTTP, HTTPS
-
Command-Line Interface: Telnet, SSH
-
SNMP v1, v2c
-
802.1AB LLDP
-
Vigor Router Switch Management
-
Configuration File Export & Import
|
Access Control |
-
Multiple admin accounts
-
2-level user privilege
|
Diagnostic Tool |
-
Syslog
-
Port Mirroring
-
Port-based Cable Test
|
Physical Specification |
Dimension(mm) |
-
435(L) x 196(W) x 44(H)(17.1" x 7.7" x 1.7")
|
Weight |
|
Environmental Requirement |
Temperature |
-
Operating: 0°C ~ 40°C
-
Storage: -20°C ~ 70°C
|
Humidity |
-
Operating: 10% ~ 90%
(non-condensing)
-
Storage: 5% ~ 90%
(non-condensing)
|
