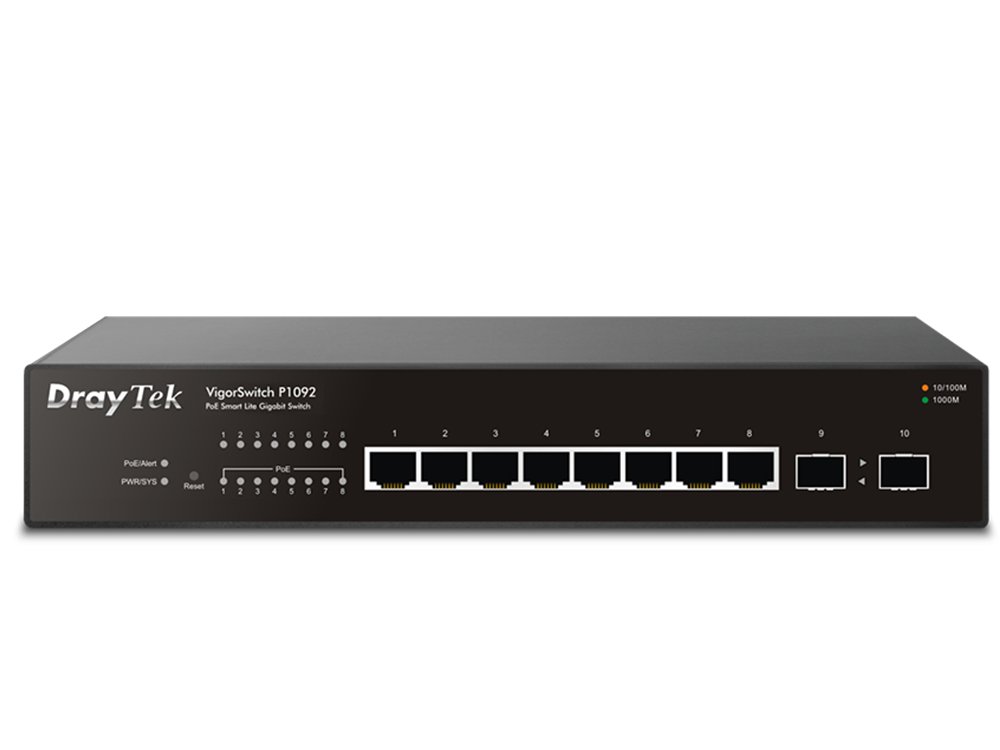

DrayTek VigorSwitch P1092

Код: 7061

SystemStandard

• 802.3 10Base-T
• 802.3u 100Base-T
• 802.3ab 1000Base-T
• 802.3x Flow Control
• 802.3 Auto-Negotiation
• 802.1p Class of Service
• 802.3ad LACP
• 802.3az EEE

IP version

• IPv4

Performance

• 1.5 Mbit buffer size
• 20 Gbps switching capacity
• 14.9 Mpps forwarding rate (64 bytes)
• 4k MAC address table
• Up to 9KB jumbo frame

HardwarePorts

• 8 x 10/100/1000 Gigabit Ethernet RJ-45 PoE+ capable ports
• 2 x SFP ports

Power over Ethernet (PoE)Standard

• 802.3af (PoE)
• 802.3at (PoE+)

Power Budget

• 110 watts

VLAN

• Up to 8 VLAN
• 802.1q Tag-based VLAN

QoSQoS Queues

• 4 queues
• Queue Scheduling: SPQ, WFQ

Rate Limit

• Ingress Rate Control
• Egress Rate Control

Class of Service

• 802.1p CoS

Security

• Storm Control

AvailabilityLink Aggregation

• 802.3ad Support
• Up to 2 ports per group
• Up to 2 groups

Multicast

• IGMP v1, v2

ManagementConfiguration
& Monitoring

• Web Interface: HTTP
• Configuration File Export & Import

Diagnostic Tool

• Port Mirroring

Physical SpecificationDimension(mm)

• 265(L) x 184(W) x 44(H)
  (10.4" x 7.2" x 1.7")

Weight

• 1.68 kg (3.7 lb)

Environmental RequirementTemperature

• Operating: 0°C ~ 40°C
• Storage: -20°C ~ 70°C

Humidity

• Operating: 10% ~ 90%
  (non-condensing)
• Storage: 5% ~ 90%
  (non-condensing)
