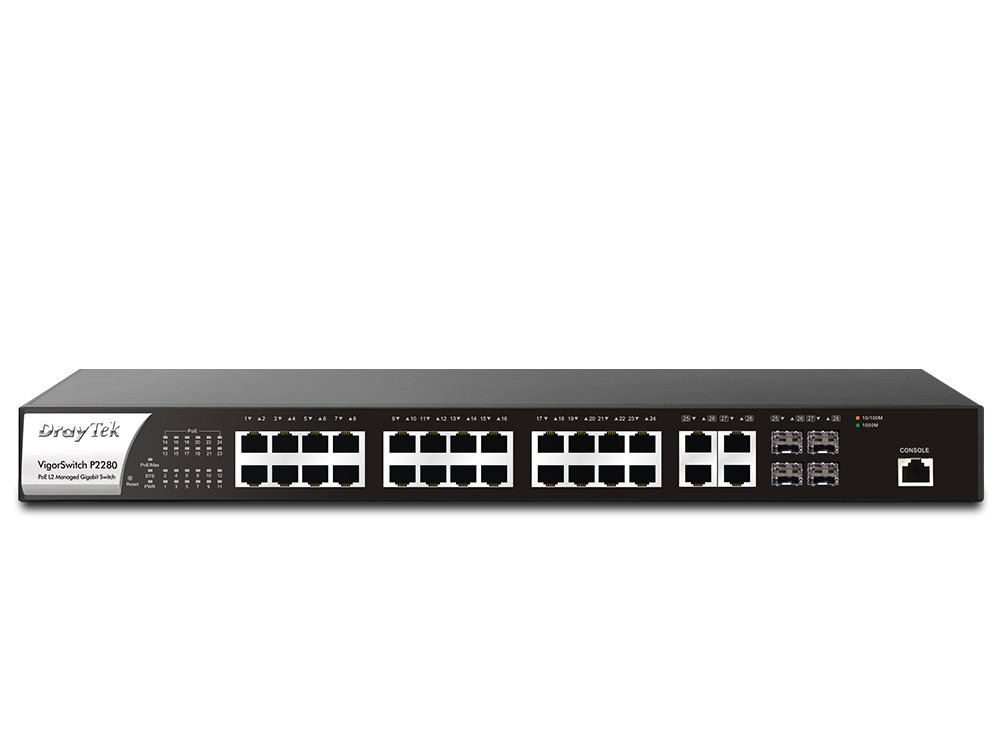

DrayTek VigorSwitch P2280

Код: 7063

30 213 грн.

System
Standard	802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3x Flow Control 802.3 Auto-Negotiation 802.1p Class of Service 802.1d STP 802.1w RSTP 802.1s MSTP 802.3ad LACP 802.1x Port Access Control 802.1AB LLDP 802.3az EEE
IP version	IPv4 IPv6
Performance	4.1 Mbit buffer size 56 Gbps switching capacity 41.7 Mpps forwarding rate (64 bytes) 8k MAC address table Up to 9KB jumbo frame
Hardware
Ports	24 x 10/100/1000 Gigabit Ethernet RJ-45 PoE+ capable port 4 x Gigabit RJ-45/SFP Combo port 1 x RJ45 Console port
Power	Max. Power Consumption: 453.3 watts
Power over Ethernet (PoE)
Standard	802.3af (PoE) 802.3at (PoE+)
Power Budget	340 watts
PoE Features	Power Limit Scheduled On/Off
VLAN
	Up to 256 VLAN 802.1q Tag-based VLAN MAC-based VLAN Protocol VLAN Management VLAN Voice VLAN Surveillance VLAN Port Isolation GVRP
QoS
QoS Queues	8 queues Queue Scheduling: SPQ, WRR
Rate Limit	Ingress Rate Control Egress Rate Control
Class of Service	802.1p CoS DSCP CoS-DSCP IP Precedence
Security
	Storm Control DoS Defense Access Control List by MAC/IPv4/IPv6 802.1x Port Access Control IP Source Guard ARP Inspection DHCP Snooping with Option 82
Availability
Link Aggregation	802.3ad Support Up to 8 ports per group Up to 8 groups
Spanning Tree	802.1d (STP) 802.1w (RSTP) 802.1s (MSTP)
Multicast	IGMP v2, v3 Snooping IGMP Querier MLD v1, v2 Snooping
Management
Configuration & Monitoring	Dual Image Support Web Interface: HTTP, HTTPS Command-Line Interface: Telnet, SSH SNMP v1, v2c, v3 RMON Group 1, 2, 3, & 9 802.1AB LLDP SNTP Configuration File Export & Import by Console Vigor Router Switch Management
Access Control	Multiple admin accounts 2-level user privilege
Authentication	Local RADIUS TACACS+
Diagnostic Tool	Syslog Port Mirroring Port-based Cable Test
Physical Specification
Dimension(mm)	441(L) x 270(W) x 45(H) (17.4" x 10.6" x 1.77")
Weight	4.35 kg (9.0 lb)
Environmental Requirement
Temperature	Operating: 0°C ~ 40°C Storage: -20°C ~ 70°C
Humidity	Operating: 10% ~ 90% (non-condensing) Storage: 5% ~ 90% (non-condensin
