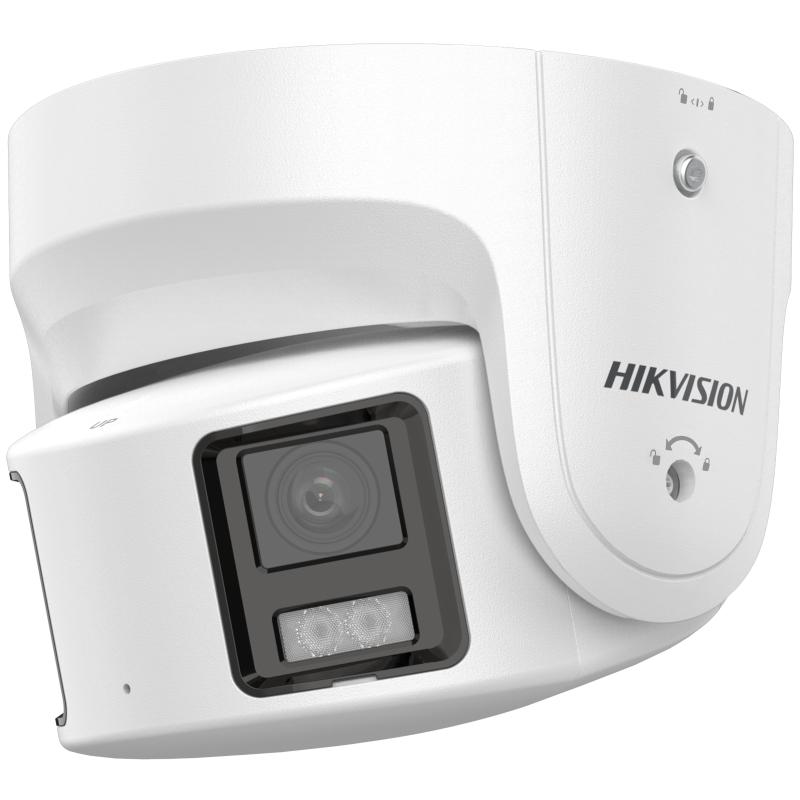

Hikvision DS-2CD2387G2P-LSU/SL

Код: 8275

Производитель: Hikvision

• • Camera
  • Image Sensor2 × 1/1.8" Progressive Scan CMOS
  • Max. Resolution5120 × 1440
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: 0° to 30°,tilt: -75° to 75°
  • Lens
  • Lens TypeFixed focal lens, Dual lens: 4 mm
  • Focal Length & FOV4 mm, horizontal FOV: 180°, vertical FOV: 44°
  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth Of Field3.6 m to ∞
  • DORI
  • DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Video
  • Main Stream

    When WDR is On:

    50 Hz: 12.5 fps (5120 × 1440)

    60 Hz: 15 fps (5120 × 1440)

    When WDR is Off:

    50 Hz: 20 fps (5120 × 1440)

    60 Hz: 20 fps (5120 × 1440)

  • Sub-Stream

    When WDR is On:

    50 Hz: 12.5 fps (1920 × 536, 960 × 272)

    60 Hz: 15 fps (1920 × 536, 960 × 272)

    When WDR is Off:

    50 Hz: 20 fps (1920 × 536, 960 × 272)

    60 Hz: 20 fps (1920 × 536, 960 × 272)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264,

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio TypeMono sound
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage

    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),NVR,

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11 ,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image
  • Image Parameters SwitchYes
  • Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  •
