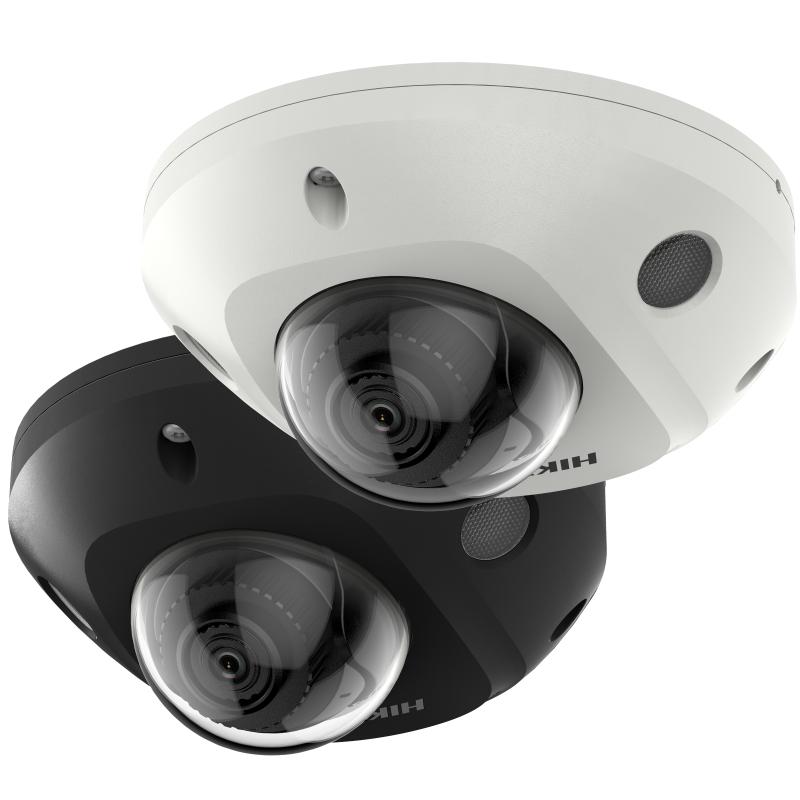

Hikvision DS-2CD2543G2-IWS

Код: 8325

Производитель: Hikvision

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2 mm, horizontal FOV 128°, vertical FOV 75°, diagonal FOV 147°

  2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8°

  4 mm, horizontal FOV 83.7°, vertical FOV 43.0°, diagonal FOV 100.3°

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6
• Depth Of Field

  2 mm: 0.6 m to ∞

  2.8 mm: 1.4 m to ∞

  4 mm: 1.6 m to ∞

• DORI
• DORI

  2 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

  2.8 mm: D: 64 m, O: 25 m, R: 13 m, I: 6 m

  4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.265+/H.264+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X (except for -W model), QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Wi-Fi
• Encryption Mode-W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
• Wi-Fi Protocol

  -W:

  802.11b: CCK, QPSK, BPSK

  802.11g/n: OFDM

• Frequency Range-W: 2.4 GHz to 2.4835 GHz
• Channel Bandwidth-W: 20/40 MHz
• Modulation

  -W:

  802.11b: CCK, QPSK, BPSK

  802.11g/n: OFDM

• Transfer Rate

  -W:

  802.11b: 11 Mbps

  802.11g: 54 Mbps

  802.11n: up to 300 Mbps

• Wireless Range-W: Up to 80 m (The performance varies based on actual environment)

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 52 dB
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 512 GB
• Built-In MicrophoneYes
• Audio

  -IS/IWS:

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm

  -IS/IWS:

  1 input, 1 output (max. 12 VDC, 20 mA)

• Reset KeyYes

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart Event

  Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))

  Face detection

• LinkageUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

• General
• Power

  -IS:

  12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W

  -IWS:

  12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W

• DimensionØ110 mm × 57.4 mm (Ø 4.3" × 2.3")
