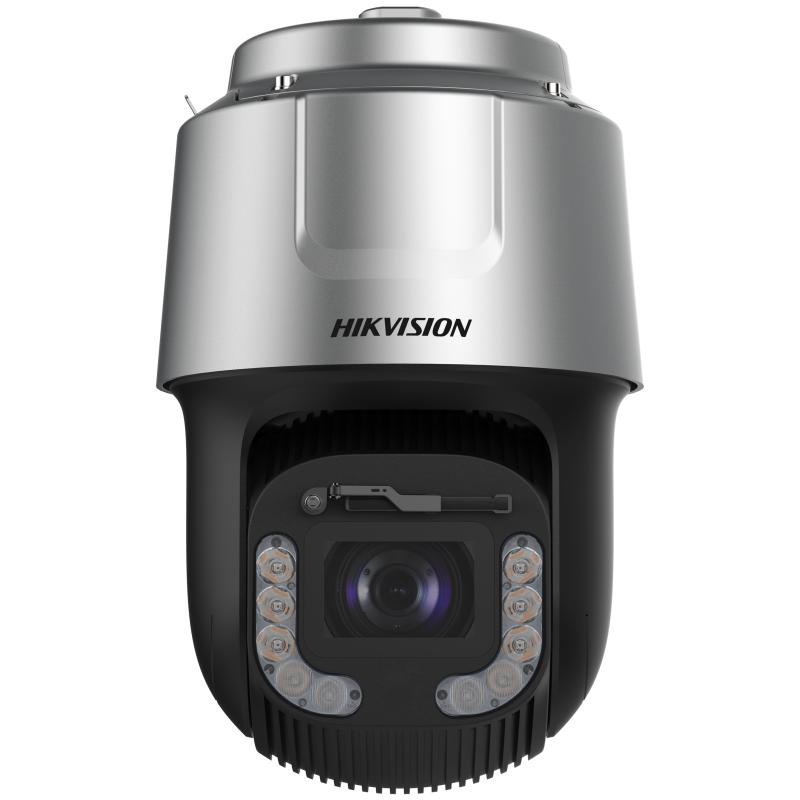

Hikvision DS-2DF8C435MHS-DELW

Код: 8282

Производитель: Hikvision

• Camera
• Image SensorTwo sensors, 1/1.8" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.0004 Lux @ (F1.6, AGC ON),B/W: 0.0001 Lux @ (F1.6, AGC ON),0 Lux with IR
• Shutter Speed1/1 s to 1/30000 s
• Zoom35 × optical,16 × digital
• Slow ShutterYes
• BLCyes
• 3D DNRyes

• Lens
• Focal Length5.9 to 206.5 mm
• FOVHorizontal field of view: 60.2° to 2.24°, vertical field of view: 36° to 1.26°, diagonal field of view: 68° to 2.56°
• FocusAuto,semi-auto,manual
• ApertureMax. F1.6
• Zoom SpeedApprox. 4.3 s

• Illuminator
• Supplement Light TypeHybrid
• Supplement Light RangeIR distance: up to 300 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)360° endless
• Movement Range (Tilt)-20° to 90°,auto flip
• Pan SpeedPan speed: configurable from 0.1° to 210°/s, preset speed: 280°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s
• Proportional PanYes
• Presets300
• Preset FreezingYes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,dome reboot,dome adjust,aux output,panorama scan
• Power-Off MemoryYes

• Video
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)

• Network
• ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/HostUp to 32 users. 3 user levels: administrator, operator, and user
• SecurityPassword protection,complicated password,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),watermark,IP address filter,basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS,control timeout settings,security audit log,TLS 1.3,host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• ClientiVMS-4200,HikCentral Pro,Hik-Connect
• Web BrowserSafari12+,Chrome57+,Firefox52+,IE10+

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay,night,auto,schedule
• Wide Dynamic Range (WDR)140 dB
• SNR≥ 52 dB
• DefogOptical defog
• Image StabilizationEIS (Built-in gyroscope to improve EIS performance)
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes

• Supplement Detection
• Satellite PositioningNo
• GyroscopeYes
• CompassNo

• Interface
• Video OutputCVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

  1 output (line out), line level, output impedance: 600 Ω

• Alarm7 input(s), 2 output(s)
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ResetYes

• Event
• Basic EventMotion detection,video tampering alarm,exception,alarm input and output
• Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection,unattended baggage detection,object removal detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart TrackingManual tracking,auto-tracking

• Deep Learning Function
• Face Capture



  Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

• Face ComparisonRecognizes face identity via face modeling, grading and comparing to those in face library

• Road Traffic And Vehicle Detection
• Road TrafficSupport vehicle detection (license plate number,vehicle model, and vehicle color recognition)
