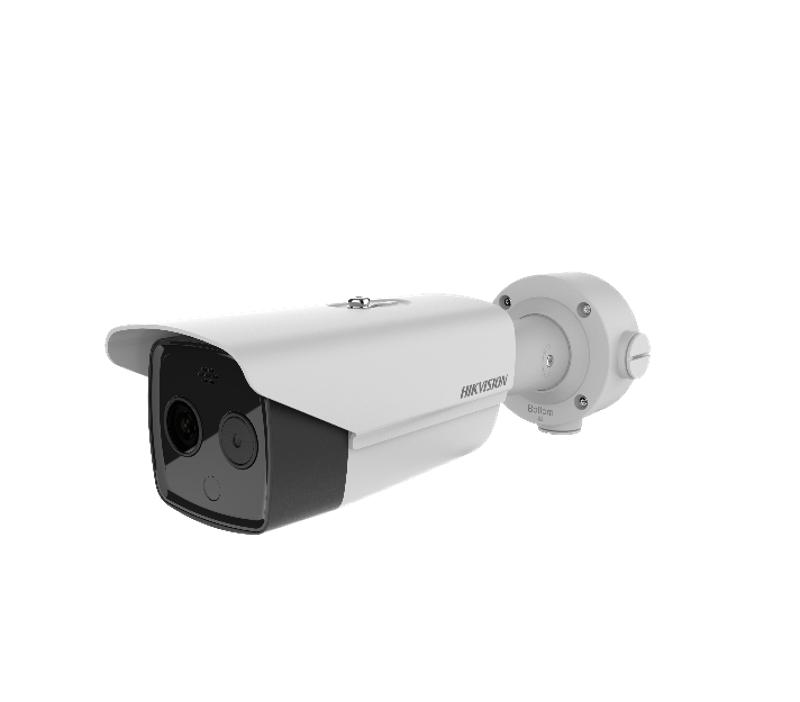

Hikvision DS-2TB2617-3/QA

Код: 8276

Производитель: Hikvision

• Thermal Module
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution160 × 120
• Pixel Interval17 μm
• Response Waveband8 μm to 14 μm
• NETDLess than 40 mK (@ 25 °C,F#=1.1)
• Focal Length3.1 mm
• IFOV5.48 mrad
• ApertureF1.1
• Field Of View50° × 37.2° (H × V)
• Min. Focusing Distance0.2 m

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 × 1520, 4 MP
• Min. IlluminationColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
• Field Of View84° × 44.8° (H × V)
• Focal Length4 mm
• Shutter Speed1 s to 1/100,000 s
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
• Day & Night ModeIR cut filter with auto switch
• WDR120 dB

• Image Effect
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel

• Illuminator
• IR DistanceUp to 40 m
• IR Intensity And AngleAutomatically adjusted

• Smart Function
• Temperature Range30 °C to 45 °C (86 °F to 113 °F)
• Temperature Accuracy± 0.5 °C

• Video And Audio
• Main Stream

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240);Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720);Optical:

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub Stream

  Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240);Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144);Optical:

  60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

• Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/H.265
• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• APIOpen-ended API, supporting ISAPI, HIKVISION SDK, and third-party management platform, open network video interface
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• Simultaneous Live ViewUp to 20 channels

• Interface
• ClientiVMS-4200, Hik-Connect
• Web BrowserPlug-in required: IE8-IE11, Chrome 41-44, Firefox 30.0-51
• Alarm Input2-ch inputs (0 to 5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
• Audio OutputLinear Level; Impedance: 600 Ω
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

• On-Board StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 GB), supports manual/alarm recording

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• PowerPoE (802.3af, class 3), 42.5 V to 57 V, 0.14 A to 0.22 A;DC 12V, 0.5A
• Power Consumption

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W

  12 VDC ± 20%: 0.5 A, max. 6 W

• Work Temperature/HumidityFrom 10 °C to 35 °C (Indoor and windless environment use only); Humidity: 95% or Less
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")
• Weight1.76 kg (3.88 lb)
