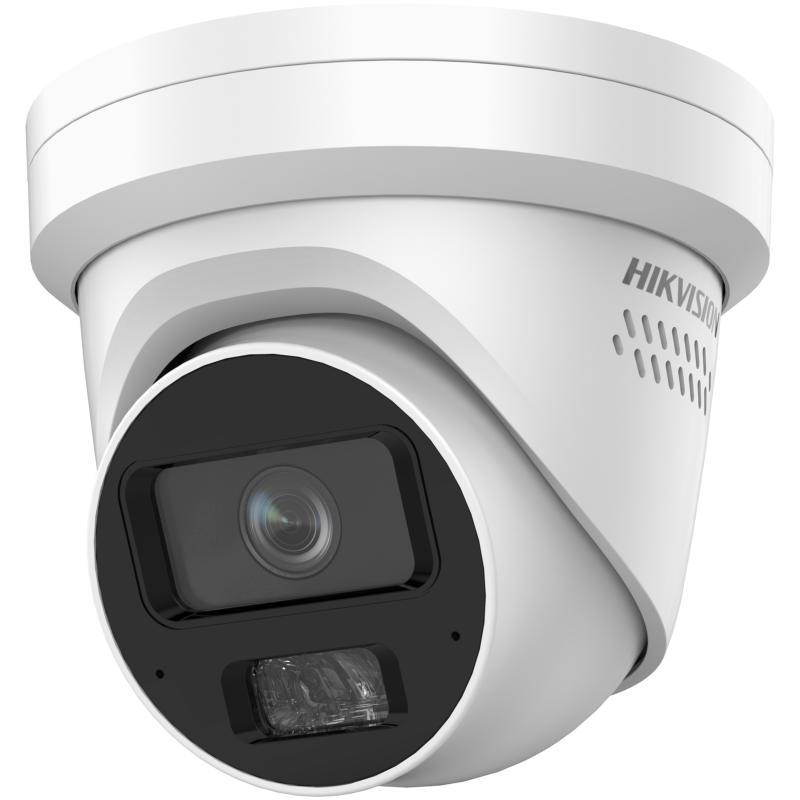

Hikvision iDS-2CD7347G0-XS

Код: 8344

Производитель: Hikvision

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution2688 × 1520
• Min. IlluminationColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter,

  Blue glass module (less ghost phenomenon)

• Angle AdjustmentPan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°

• Lens
• Focal Length & FOV

  2.8 mm: horizontal FOV 111.0°, vertical FOV 57.6°, diagonal FOV 138.4°

  4 mm: horizontal FOV 94.7°, vertical FOV 49.4°, diagonal FOV 112.6°

• Iris TypeFixed
• ApertureF1.0

• DORI
• DORI

  2.8 mm: D: 61.5 m, O: 24.4 m, R: 12.73 m, I: 6.2 m

  4 mm: D: 72.1 m, O: 28.6 m, R: 14.4 m, I: 7.2 m

• Illuminator
• Supplement Light TypeHybrid (IR and White Light)
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• HEOP
• Open Resources

  Memory: 40 MB,

  Smart RAM: 350 MB,

  eMMC: 1 GB

• Computing Power1.5 TOPS
• Open CapabilityHEOP 2.0 OpendevSDK
• Deep Learning StructureCaffe,TensorFlow,PaddlePaddle,ONNX
• Programming LanguageC++

• Video
• Main Stream

  50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)



• Fourth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)



• Fifth Stream

  50 Hz: 25 fps (704 × 576, 640 × 480)

  60 Hz: 30 fps (704 × 480, 640 × 480)



• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG,

  Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Target CroppingYes
• Region Of Interest (ROI)4 fixed regions for each stream

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200,Hik-Connect
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
• Wide Dynamic Range (WDR)140 dB
• Image EnhancementBLC,HLC,3D DNR,Defog
• Privacy Mask8 programmable polygon privacy masks
• Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
• Image StabilizationEIS

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Audio1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

• Event
• Basic EventMotion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
• Smart Eventscene change detection,audio exception detection,defocus detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

• Deep Learning Function
• Face Capture



  Detects up to 60 faces simultaneously,

  Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°,

  Uploads face with background and closed-up face pictures

• People Counting

  Supports crossline people counting,

  Supports counting, displaying and exporting the people flow data of entering and exiting. (The data is stored in the flash.),

  The real-time people flow data is displayed on the screen. ,

  Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°.,

  Uploads face with background and closed-up face picture.,

  Supports real-time uploading and uploading by statistic cycle
