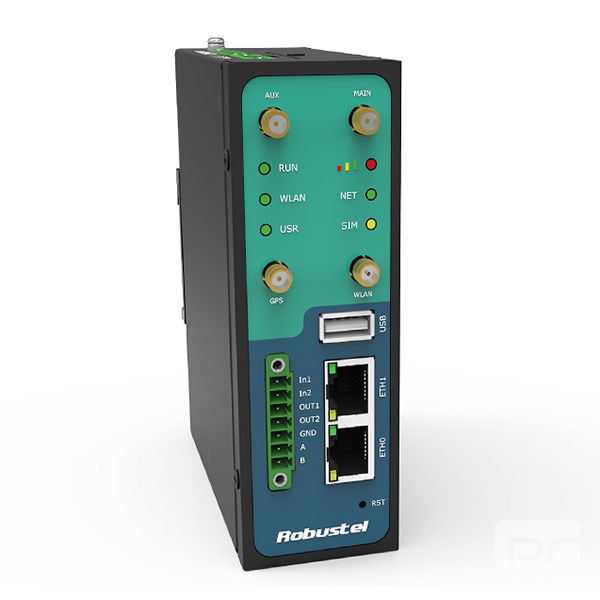

Robustel R3000-3P

Код: 4002

Производитель: Robustel

14 621 грн.

Specification

Cellular Interface
Standards	GSM/GPRS/EDGE/UMTS/HSPA/FDD LTE
GPRS/EDGE	850/900/1800/1900 MHz
HSPA+	850/900/1900/2100 MHz, DL/UL 21/5.76 Mbps, fallback to 2G
FDD LTE	800/900/1800/2100/2600 MHz, DL/UL 100/50 Mbps, fallback to 3G/2G
EVDO	450 or 800/1900 MHz, Rev A/B
SIM	2 x (3V & 1.8V)
Antenna Interface	SMA Female

Ethernet Interface
Number of Ports	10/100 Mbps, 2 LANs or 1 LAN 1 WAN
Magnet Isolation Protection	1.5KV

WLAN Interface (Optional)
Standards	802.11b/g/n , support AP and Client mode
Frequency Band	2.412 - 2.485 GHz
Security	WEP ,WPA, WPA2
Encryption	64/128AES, TKIP
Antenna Interface	RP-SMA Female
Transmission Power	802.11b: 17dBm, 802.11g/n: 15dBm
Reception Sensibility	1M: -97dBm, 2M: -93dBm, 6M: -91dBm, 11M: -89dBm, 54M: -75dBm, 65M: -72dBm

System
LED Indicators	RUN, PPP, USR, 3 x RSSI
Built-in	Watchdog, Timer

Software
Network protocols	PPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, Telnet, etc
VPN tunnel	IPSec/OpenVPN/GRE
Firewall	SPI, anti-DoS, Filter, Access Control
Management	Web, SMS, CLI, RobustLink
RobustLink	Centralized M2M management platform
RobustVPN	Cloud VPN Portal

Power Supply and Consumption
Power Supply Interface	3.5mm terminal block with lock
Input Voltage	9 to 26 VDC
Power Consumption	Idle: 100 mA @ 12 V Data Link: 500 mA (peak) @ 12 V

Physical Characteristics
Housing & Weight	Metal, 300g
Dimension	(L x W x H): 127.5 x 82.5x 29.5 mm
Installation	35mm Din-Rail or wall mounting or desktop

Regulatory and Type Approvals
Approval & Certification	CE, R&TTE, RoHS, WEEE
EMI	EN 55022 (2006/A1: 2007) Class B
EMC	EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS)Level 4 EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3 EN 61000-4-6 (CS) Level 4, EN 61000-4-8 Level 4
