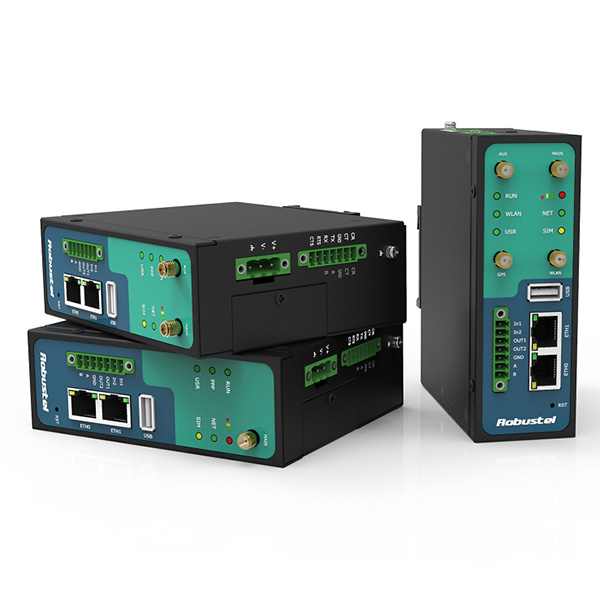

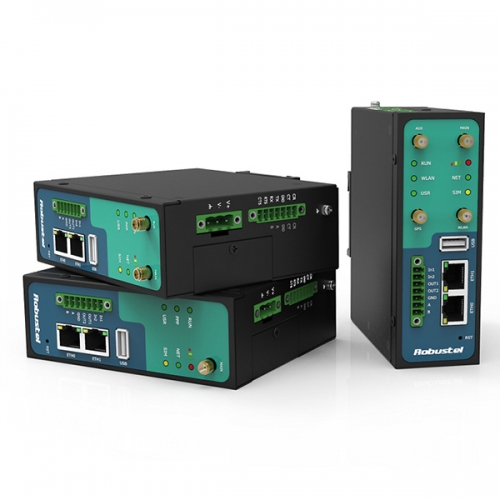

Robustel R3000-4L
Код: 4003
Производитель: Robustel
|
|
Specification
|
Cellular Interface |
|
Standards |
GSM/GPRS/EDGE/UMTS/HSPA/FDD LTE |
|
GPRS/EDGE |
850/900/1800/1900 MHz |
|
HSPA+ |
850/900/1900/2100 MHz, DL/UL 21/5.76 Mbps, fallback to 2G |
|
FDD LTE |
800/900/1800/2100/2600 MHz, DL/UL 100/50 Mbps, fallback to 3G/2G |
|
EVDO |
450 or 800/1900 MHz, Rev A/B |
|
SIM |
2 x (3V & 1.8V) |
|
Antenna Interface |
SMA Female |
|
Ethernet Interface |
|
Number of Ports |
10/100 Mbps, 2 LANs or 1 LAN 1 WAN |
|
Magnet Isolation Protection |
1.5KV |
|
WLAN Interface (Optional) |
|
Standards |
802.11b/g/n , support AP and Client mode |
|
Frequency Band |
2.412 - 2.485 GHz |
|
Security |
WEP ,WPA, WPA2 |
|
Encryption |
64/128AES, TKIP |
|
Antenna Interface |
RP-SMA Female |
|
Transmission Power |
802.11b: 17dBm, 802.11g/n: 15dBm |
|
Reception Sensibility |
1M: -97dBm, 2M: -93dBm, 6M: -91dBm, 11M: -89dBm, 54M: -75dBm, 65M: -72dBm |
|
System |
|
LED Indicators |
RUN, PPP, USR, 3 x RSSI |
|
Built-in |
Watchdog, Timer |
|
Software |
|
Network protocols |
PPP, TCP, UDP, DHCP, ICMP, NAT, DMZ, DDNS, VRRP, HTTP, HTTPs, DNS, ARP, SNTP, Telnet, etc |
|
VPN tunnel |
IPSec/OpenVPN/GRE |
|
Firewall |
SPI, anti-DoS, Filter, Access Control |
|
Management |
Web, SMS, CLI, RobustLink |
|
RobustLink |
Centralized M2M management platform |
|
RobustVPN |
Cloud VPN Portal |
|
Power Supply and Consumption |
|
Power Supply Interface |
3.5mm terminal block with lock |
|
Input Voltage |
9 to 26 VDC |
|
Power Consumption |
Idle: 100 mA @ 12 V
Data Link: 500 mA (peak) @ 12 V |
|
Physical Characteristics |
|
Housing & Weight |
Metal, 300g |
|
Dimension |
(L x W x H): 127.5 x 82.5x 29.5 mm |
|
Installation |
35mm Din-Rail or wall mounting or desktop |
|
Regulatory and Type Approvals |
|
Approval & Certification |
CE, R&TTE, RoHS, WEEE |
|
EMI |
EN 55022 (2006/A1: 2007) Class B |
|
EMC |
EN 61000-4-2 (ESD) Level 4, EN 61000-4-3 (RS)Level 4
EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 3
EN 61000-4-6 (CS) Level 4, EN 61000-4-8 Level 4 |
|
|
