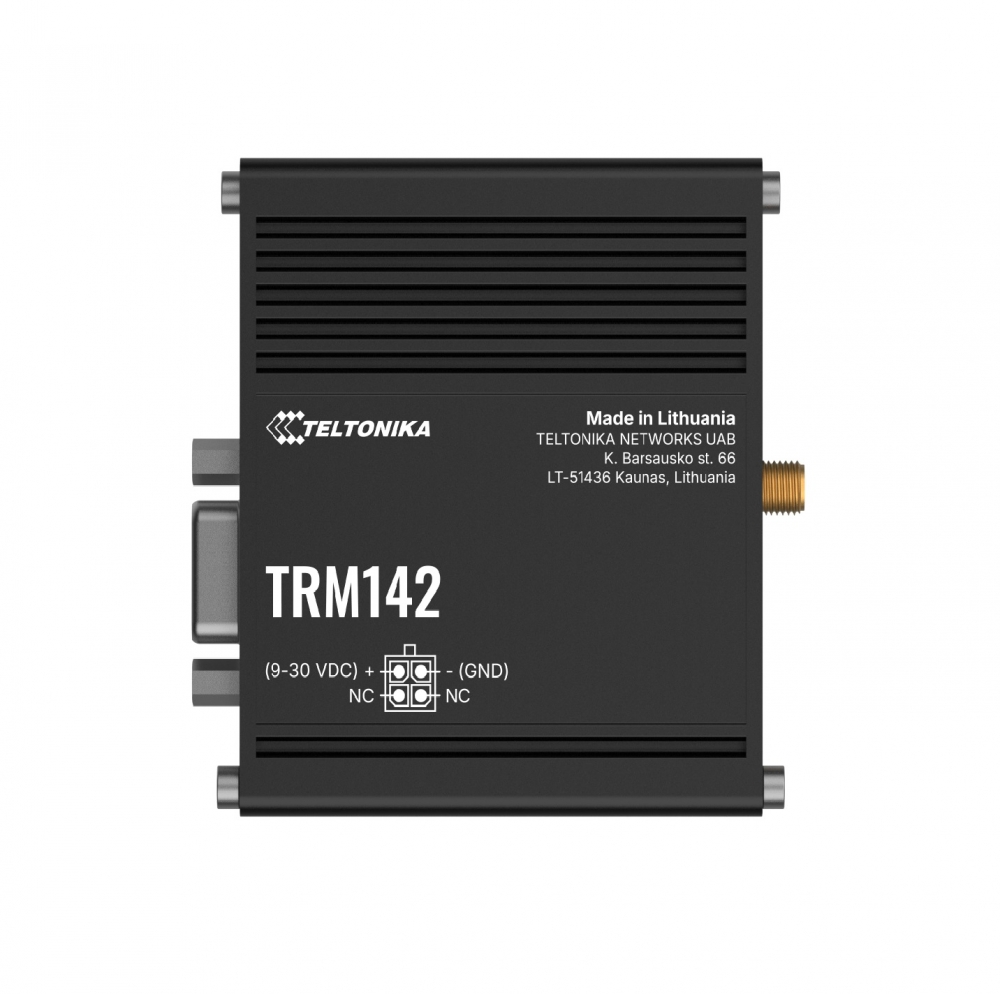

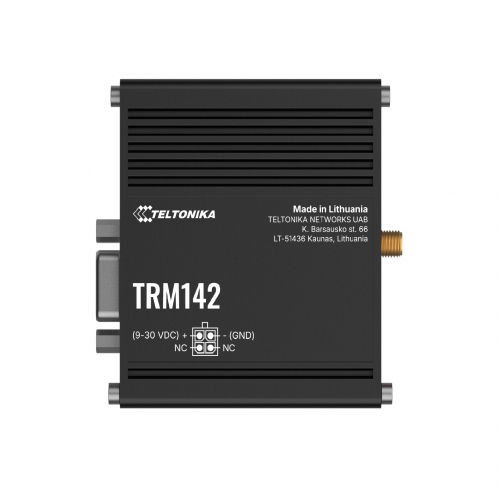

Teltonika TRM142

Код: 8416

Производитель: Teltonika

3 780 грн.

Mobile

Mobile module

4G LTE FDD up to 150 DL/50 UL Mbps, 4G LTE TDD up to 130 DL/30 UL Mbps, 3G HSPA+ up to 21 DL Mbps, 3G HSUPA up to 5.76 UL Mbps, 3G WCDMA up to 384 DL/384 UL kbps, 2G EDGE up to 236.8 DL/236.8 UL kbps, 2G GPRS up to 85.6 DL/85.6 UL kbps

3GPP Release

Release 9

Network

Management Software

Windows Connection Manager, Modem Manager (Linux)

USB Serial Driver

Windows 7/8/8.1/10/11,Linux 2.6~6.3, Android 4.x ~ 13

GNSS Driver

Android 4.x ~ 13

RIL Driver

Android 4.x ~ 13

NDIS Driver

Windows 7/8/8.1/10

Power

Connector

1 x 4-pin industrial DC power socket

Input voltage range

9 - 30 VDC, 4-pin: overvoltage protection, reverse polarity protection, surge protection

Power consumption

Idle: < 1 W, Max: < 5 W

Physical Interfaces

Status LEDs

1 x Power LED, 1 x Network LED, 1 x Mobile LED

SIM

1 x SIM slot (Mini SIM – 2FF)

Power

1 x 4-pin power connector

Antennas

1 x SMA for Mobile

USB

1 x Virtual network interface via micro USB

RS232

1 x DB9 connector, RS232 (with RTS, CTS flow control)

Скинути

Reboot/User default reset/Factory reset button

Physical Specification

Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

75.9 x 25 x 74.5 mm

Weight

135 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Схвалення

Regulatory

CE, UKCA, CB, RCM, EAC, UCRF, WEEE
