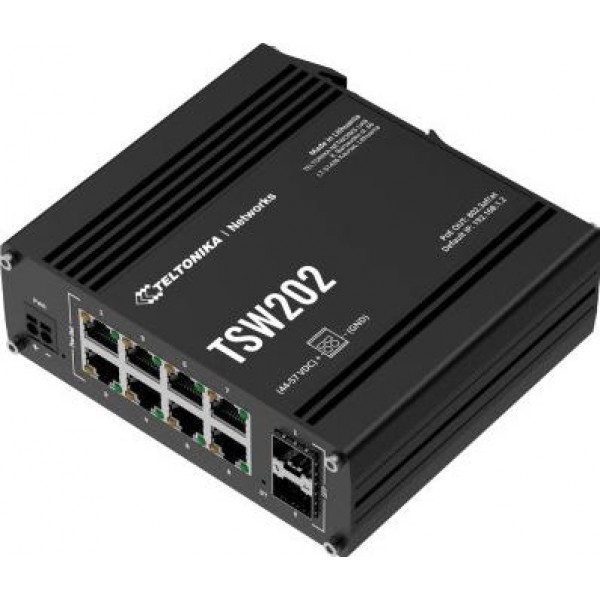

Teltonika TSW202

Код: 8143

Производитель: Teltonika

керований комутатор PoE+
7 452 грн.
- +
Купить
ETHERNET
  • ETH
    Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
  • Fibre
    2 x SFP ports
  • IEEE 802.3 series standards
    IEEE 802.1p, IEEE 802.1Q, 802.3az
POE OUT
  • PoE ports
    Port 1 - 8
  • PoE standards
    802.3af and 802.3at
  • PoE Max Power per Port (at PSE)
    30 W
  • Total PoE Power Budget (at PSE)
    240 W
  • Maximum Ethernet cable length
    100 m
SERVICES
  • EtherNet/IP
    Yes
  • Profinet (class B)
    Yes
  • SNMP V2, V3
    Yes
  • LLDP
    Yes
NETWORK
  • MRP
    MRP client role, MRP manager role
  • L2 features
    Loop protection, Forwarding table, VLAN, STP/RSTP
  • DHCP
    DHCP server, DHCP client
  • Port Settings
    Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring
  • L3 Features
    Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
QOS
  • QOS
    Port priority, DSCP priority, 802.1p priority, TOS
  • Scheduling method
    SP/WFQ/WRR
  • Bandwidth control
    Rate limiting, storm control
  • Traffic Shaper
    Port-based shaping
DIAGNOSTICS
  • Tools
    Cable diagnostic, ping, traceroute, nslookup
SYSTEM CHARACTERISTICS
  • RAM
    128MB, DDR3
  • FLASH storage
    16 MB serial flash
FIRMWARE / CONFIGURATION
  • WEB UI
    Update FW from file, check FW on server, configuration profiles, configuration backup
  • FOTA
    Update FW
  • RMS
    Update FW/configuration for multiple devices at once
  • Keep settings
    Update FW without losing current configuration
FIRMWARE CUSTOMISATION
  • Operating system
    TSWOS (OpenWrt based Linux OS)
  • Supported languages
    Busybox shell, Lua, C, C++
  • Development tools
    SDK package with build environment provided
PERFORMANCE SPECIFICATIONS
  • Bandwidth (Non-blocking)
    20 Gbps
  • Packet buffer
    512 KB
  • MAC address table size
    8K entries
  • Jumbo frame support
    10000 bytes
POWER
  • Connector
    2-pin industrial DC power socket
  • Input voltage range
    7 – 57 VDC
  • PoE-out input voltage range
    44 – 57 VDC
  • Power consumption
    Idle: < 3 W / Max: 8 W / PoE Max: 248 W
PHYSICAL INTERFACES
  • Ethernet
    8 x RJ45 ports, 10/100/1000 Mbps
  • Fibre
    2 x SFP ports
  • Status LEDs
    1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
  • Power
    1 x 2-pin industrial DC power socket
  • Reset
    Software reset button
  • Other

    1 x Grounding screw
PHYSICAL SPECIFICATION
  • Casing material
    Anodized aluminum housing and panels
  • Dimensions (W x H x D)
    132 x 44.2 x 122.2 mm
  • Weight
    610 g
  • Mounting options
    Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
OPERATING ENVIRONMENT
  • Operating temperature
    -40 °C to 75 °C
  • Operating humidity
    10% to 90% non-condensing
  • Ingress Protection Rating
    IP30
REGULATORY & TYPE APPROVALS
  • Regulatory
    CE, UKCA, RCM, ANRT, FCC, IC, CB, RoHS, REACH
EMC EMISSIONS & IMMUNITY
  • Standards
    EN 55032:2015 + A11:2020 + A1:2020
    EN 55035:2017 + A11:2020
    EN IEC 61000-3-2: 2019 + A1:2021
    EN 61000-3-3: 2013 + A1:2019 + A2:2021
  • ESD
    EN 61000-4-2:2009
  • Radiated Immunity
    EN IEC 61000-4-3:2020
  • EFT
    EN 61000-4-4:2012
  • Surge Immunity (AC Mains Power Port)
    EN 61000-4-5:2014 + A1:2017
  • CS
    EN 61000-4-6:2014
  • DIP
