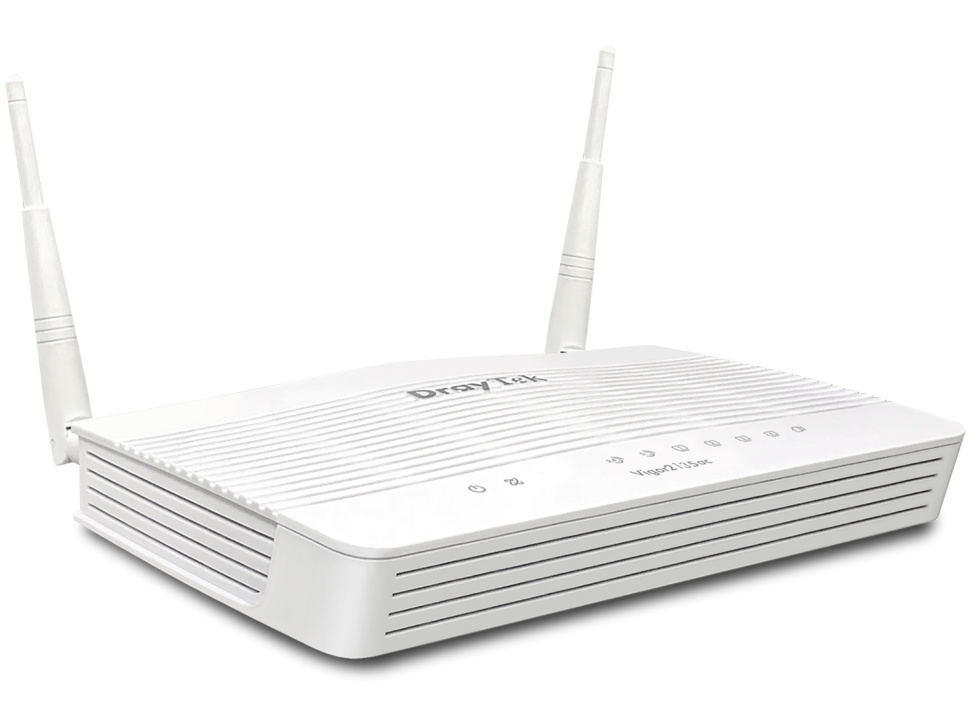

DrayTek Vigor2135ax
Код: 8116
Производитель: DrayTek
|
|
|
Вес |
400 г |
|
Габариты (Ш х Г х В, мм) |
207 × 131 × 42 |
|
Стандарты Ethernet |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-T, IEEE 802.3ab 1000Base-T, IEEE 802.1q Tag-based VLAN, IEEE 802.3x Flow Control, IEEE 802.3 Auto-Negotiation, IEEE 802.1p Class of Service |
|
Тип VLAN |
IEEE 802.1q Tag-based |
|
Комплект поставки |
Руководство «Quick Start Guide», Внешний блок питания |
Основные характеристики
|
Тип физического интерфейса |
Ethernet |
|
Количество WAN портов |
1 |
|
Скорость WAN интерфейсов |
10/100/1000Based-Tx |
|
Поддержка 3.5G |
Да |
|
WAN protocol |
DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1q Multi-VLAN Tagging, Triple-Play Aplications, 3G/4G Backup |
USB
|
USB - Printer Sharing |
Да |
|
USB - файловая система |
FAT32, FTP для File Sharing, Samba для File Sharing |
VPN
|
Поддержка VPN |
Да |
|
Количество VPN |
2 |
|
VPN протоколы |
PPTP, IPSec, L2TP, L2TP over IPSec, IKEv2, LAN-to-LAN, Teleworker-toLAN, SSL |
|
VPN Encryption |
MPPE, Hardware-based AES/DES/3DES |
|
VPN аутентификация |
MD5, SHA-1 |
|
IKE Authentication |
Pre-shared Key, Digital Signature (X.509), PAP, CHAP, MS-CHAP,MS-CHAPv2 |
|
VPN - DHCP over IPSec |
Да |
|
VPN - IPSec NAT-Traversal (NAT-T) |
Да |
|
VPN - Dead Peer Detection (DPD) |
Да |
|
VPN Pass-Through |
Да |
|
VPN - mOTP |
Да |
Content Security Management (CSM)
|
APP Enforcement |
Support APPE Signature Upgrade by license |
|
URL Content Filter |
Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking, Excepting Subnets |
|
Web Content Filter (support Cyren and BPjM ) |
Да |
Network management
|
Обновление микропрограммы |
TFTP, FTP, HTTP, TR-069 |
Bandwidth Management
|
QoS |
Layer-2 (802.1p), Layer-3 (TOS / DSCP), Bandwidth Borrowed, 4-level priority for each direction (Inbound/Outbound), DiffServ Code Point Classifying, Class-based bandwidth guarantee by user- defined traffic categories, Выделенная линия для VoIP |
|
Bandwidth / Session limitation |
Да |
Firewall
|
Firewall - Object-based Firewall |
Да |
|
Firewall - DoS defense |
Да |
|
DMZ Host |
Да |
|
Port-redirection |
Да |
|
Open Port |
Да |
|
Firewall - Time Schedule Control |
Да |
|
Firewall - DNS Filter Enhancement |
Да |
|
Firewall - User Management |
Да |
Network Features
|
Packet Forwarding Acceleration |
Да |
|
DHCP |
client, relay, server |
|
IGMP |
v2/v3, v1/v2c |
|
LAN DNS /DNS Forwarding |
Да |
|
Dynamic DNS |
Да |
|
NTP client |
Да |
|
Call scheduling |
Да |
|
Active Directory /LDAP |
Client |
|
DNS |
Cache, Proxy |
|
Bonjour service |
Да |
|
Routing protocol |
Static routing, RIP v1/v2 |
Wi-Fi
|
Поддержка WiFi |
Да |
|
WiFi стандарт |
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
|
Поддерживаемые частоты |
2,4 ГГц, 5 ГГц |
|
Multiple SSID |
4 |
|
Hidden SSID |
Да |
|
Wireless Isolation |
Да |
|
Wireless Security Mode |
64/128-bit WEP, WPA/PSK, WPA2/PSK, Mixed mode(WPA+WPA2)/PSK |
|
Station/Client List |
Да |
|
Wireless Wizard |
Да |
|
WPS |
Да |
|
|
|
|
